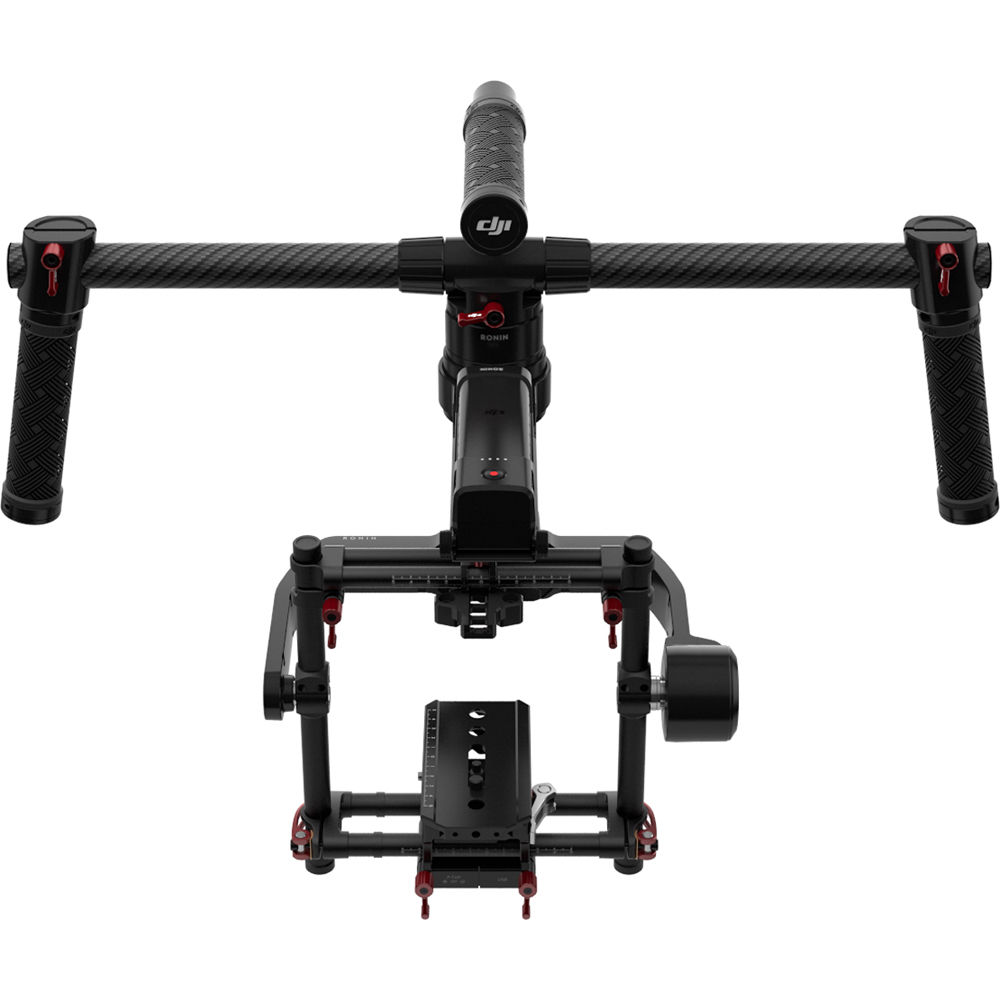

Ronin-MX

The Ronin-MX from DJI is dual-use gimbal suitable both for mounting on the Matrice 600 aerial platform as well as deployment closer to the ground. Improving over the Ronin-M, it features magnesium construction to yield high rigidity while keeping the weight down. The gimbal is suitable for cinema cameras, mirrorless cameras, and DSLRs weighing up to 10 pounds. Out of the box it supports two-operator operation, and includes a radio controller (transmitter) for the camera operator. There is also an optional Thumb Controller (available separately) for solo operation. When installed on the Matrice 600 aircraft, the gimbal can be controlled via the DJI GO app. An included universal mounting adapter allows it to be adapted for use with jibs, car mounts, and various other types of camera support equipment. There is also a handlebar for handheld use. - Load Weight (Reference Value) 10 lb / 4.5 kg - Angular Vibration Range ± 0.02° - Maximum Controlled Rotation Speed Pan Axis: 200°/s, Tilt Axis: 100°/s, Roll Axis: 30°/s - Mechanical Endpoint Range Pan Axis Control: 360°, Tilt Axis Control: +270° to -150°, Roll Axis Control: ± 110° - Controlled Rotation Range Pan Axis Control: 360°, Tilt Axis Control: +45° to -135°, Roll Axis Control: ± 25° - Sensors Temperature sensor - Processing 32-Bit DSP Processor - Expandability D-Bus receiver supported - Working Current Static Current: 300 mA (at 16 V), Dynamic Current: 600 mA (at 16 V), Locked Motor Current: Up to 10 A (at 16 V) - Receiver: Frequency 2.4 GHz - Transmitter: Frequency 2.4 GHz - Connectivity: Wireless Bluetooth 4.0, Wired 1 x USB 2.0 - Dimensions (W x D x H) Excluding Handle Bar: 11 x 14.6 x 13.4" / 280 x 370 x 340 mm, Including Handle Bar: 22 x 14.6 x 17.3" / 560 x 370 x 440 mm - Weight Including Handle Bar: 6.11 lb / 2.77 kg, Including Vibration Damper: 4.74 lb / 2.15 kg
